VOXER

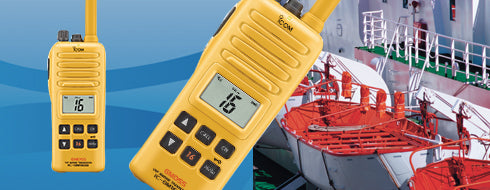

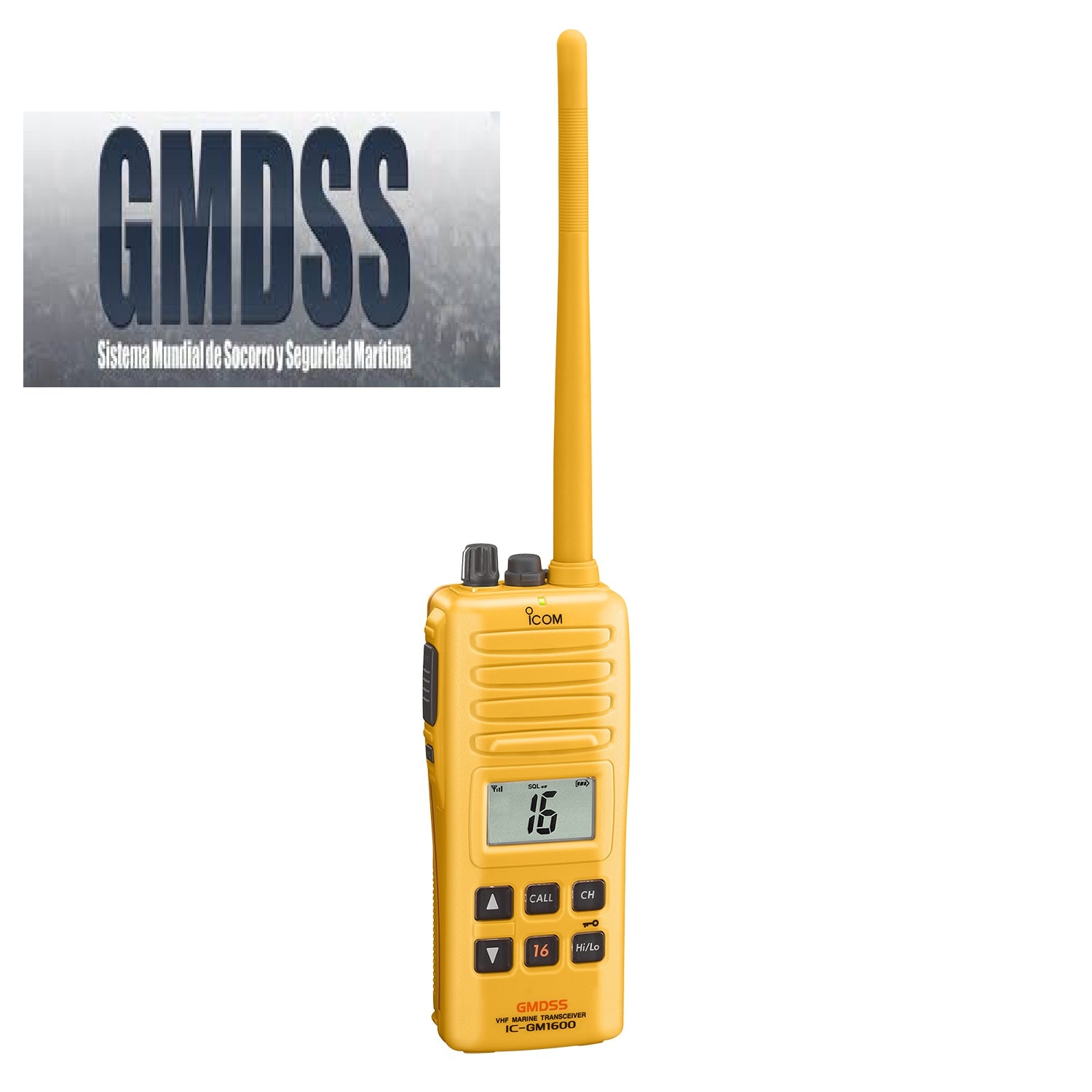

ICOM IC-GM160021K VHF 156.300–156.875 MHz FM Analogico 2W/1W Radio marina analogica de un color motivante GMDSS Precio +iva

ICOM IC-GM160021K VHF 156.300–156.875 MHz FM Analogico 2W/1W Radio marina analogica de un color motivante GMDSS Precio +iva

Precio habitual $942.647 CLP
Precio habitual $1.211.949 CLP Precio de oferta $942.647 CLP
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Descripción

GMDSS** significa **Global Maritime Distress and Safety System** (Sistema Global de Socorro y Seguridad Marítimo).

Dispositivo portátil del SMSSM para embarcaciones de supervivencia.

La radio portátil VHF marina GM1600 está diseñada para las comunicaciones de embarcaciones de supervivencia que cumplen la normativa GMDSS. La radio está diseñada para sobrevivir y funcionar en las condiciones ambientales extremas comunes en las emergencias marinas y aporta la última tecnología de Búsqueda y Rescate al mercado. La carcasa resistente a golpes del GM1600 está fabricada con un polímero inyectado en color brillante que garantiza que esta pieza esencial del equipo de emergencia sea siempre fácil de encontrar en una bolsa de supervivencia, en una balsa salvavidas o en cualquier otro lugar en el que necesite encontrarla rápidamente.

Paquete de embarcación de supervivencia (GM1600): Incluye batería fechada y sellada conforme a GMDSS (BP-234)
Paquete de embarcación de supervivencia y a bordo (GM1600 21K): Incluye cargador con batería de iones de litio (BP-252), y una batería fechada y sellada compatible con GMDSS (BP-234)

Cumple los estrictos requisitos medioambientales del SMSSM

El IC-GM1600 cumple los requisitos de resistencia a temperaturas, choques térmicos, vibraciones y caídas (desde 1 m de altura). Tras superar esas pruebas ambientales, el IC-GM1600 conserva la construcción estanca a 1 m de profundidad, tal como se especifica en la resolución MSC.149(77) de la OMI y otras normativas relacionadas.

Batería de litio de características superiores a bajas temperaturas

Para uso en embarcaciones de supervivencia, la batería de litio opcional BP-234 (no recargable) de 3300mAh proporciona más de 8 horas* de autonomía incluso a -20°C.

* Tx:Rx:Stand-by=6:6:48.

Teclado grande con acción positiva de los botones

Los botones y mandos de gran tamaño proporcionan una respuesta táctil para un funcionamiento positivo.

Pantalla LCD de gran ángulo de visión

La pantalla LCD de alta intensidad y amplio ángulo de visión ofrece caracteres muy claros y fáciles de leer. El brillante indicador LED de la parte superior del panel muestra claramente el estado de funcionamiento.

Fácil de manejar incluso para operarios inexpertos

Las instrucciones de uso están impresas en el panel posterior. Todas las operaciones pueden realizarse con una sola mano.

Otras características

  • Acceso mediante una pulsación al canal 16 y al canal de llamada
  • Cuerpo de color amarillo muy visible
  • Auriculares VOX opcionales para uso a bordo
Gama de frecuencias Tx/Rx 156,300-156,875 MHz
Dimensiones (Ancho×Alto×Fondo)
(Proyecciones no incluidas)
65×145×44 mm
2,56×5,71×1,73 pulgadas
Peso (aprox.) 385 g; 13,6 oz
(Con BP-234)
Drenaje actual Transmitir (Alto) 1,0 A/0,7 A (2 W/1 W)
Audio máximo 200 mA
Ahorro de energía -
Sensibilidad (a 12 dB SINAD) 0,25 μV típ. (versión EE.UU.)
Rechazo de intermodulación 70 dB (USA)
68 dB (GEN)
Potencia de salida de audio (10% dist./carga 8 Ω) 350 mW típicos
Potencia de salida RF 2/1 W

Todas las especificaciones indicadas están sujetas a cambios sin previo aviso ni obligación.

Accesorios suministrados

  • Batería, BP-252
  • Cargador de batería, BC-173
  • Adaptador de CA, BC-147SA/SE*.
  • Clip para cinturón, MB-103Y
  • Antena, FA-S61V
  • Correa para el cuello

* Según la versión

GMDSS Portable for Survival Craft

● Meets the strict environmental requirements for survival craft radio The IC-GM1600 meets temperature, thermal shock, vibration and drop resistant (from 1 m height) requirements. After passing those environmental tests, the IC-GM1600 retains 1 m depth waterproof construction as specified by IMO resolutions A.694(17), MSC149(77) and related specifications.

● Optional high capacity Lithium battery, BP-234, has superior low temperature characteristics Provides more than 8 hours operating time even at –20°C. (Duty cycle: Tx: Rx: Stand-by = 6: 6: 48)

● Large keypad with positive button action

● Wide viewing angle LCD display

● Other features

• One touch access to Channel 16 and call channel

• Highly visible yellow colored body

• Bright LED indicator on the top of panel

• Optional VOX headset for on-board use

SPECIFICATIONS

Frequency coverage Tx/Rx 156.300–156.875 MHz

Type of emission 16K0G3E (FM)

Power supply requirement 7.5 V DC nominal

Current drain (approx.)

Tx 2 W/1 W output

Rx Max. audio 1.0 A/0.7 A 200 mA

Antenna impedance 50 Ω (SMA fixed-type)

Operating temperature range

–20°C to +60°C; –4°F to +140°F

Dimensions (W × H × D) (Projections not included) 65 × 145 × 44 mm

Weight (approx.) 385 g (With BP-234)

TRANSMITTER

Output power (Hi/Low) 2 W/1 W

Max. frequency deviation ±5.0 kHz

Frequency error ±5.0 ppm

Audio harmonic distortion 10% (at 60% deviation)

Spurious emissions –70 dBc typical

Adjacent channel power 70 dB

FM Hum and noise ratio 40 dB

Residual modulation –

RECEIVER

Sensitivity 0.25 µV typical (at 12 dB SINAD)

Squelch sensitivity (at threshold) 0.35 µV typical

Adjacent channel selectivity 70 dB typical

Spurious response 70 dB typical

Intermodulation rejection 70 dB typical

Hum and noise 40 dB

Audio output power (at 10% distortion 8 Ω load) 350 mW typ

Measurements made in accordance with TIA/EIA-603 and FCC part 80.271 for USA version. ETS 300-225-3 for General version. All stated specifications are subject to change without notice or obligation. To comply with the requirements of GMDSS survival craft radio, the primary battery pack, BP-234, is required.

Supplied accessories: (* Depending on version) • Battery pack, BP-252 • Battery charger, BC-173 • AC adapter, BC-147SA/SE* • Belt clip, MB-103Y • Antenna, FA-S61V • Neck strap

OPTIONS

BP-234 Lithium battery pack 9.0 V/3300 mAh primary battery pack for GMDSS survival craft radio.

BP-252 Rechargeable Li-ion battery 7.2 V/1000 mAh (min), 1050 mAh (typ.). Same as supplied with some versions.

BC-173 DESKTOP CHARGER

BC-147SA/SE* AC ADAPTER

Regularly charges the battery pack, BP-252 in 10 hours (approx.).

* BC-147SA for the USA plug. SE for the European plug.

MB-96F : Fixed type belt hanger. Use with MB-103Y.

MB-96N : Swivel type belt hanger. Swivel joint of the MB-86 is supplied.

MB-103Y : Alligator type belt clip. Same as supplied.

MB-86 : Swivel belt clip. Prevents accidental dropping from your belt.

Some options may not be available in some countries, or unavailable due to no T/A. Please ask your dealer for details.

Read all instructions enclosed with the transceiver carefully and completely before using the transceiver. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand and/or other countries. All other trademarks are the properties of their respective holders.
