VOXER

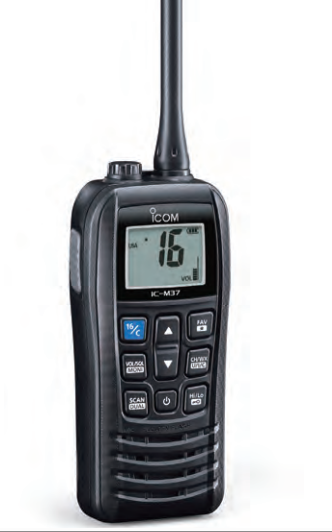

ICOM IC-M37 Tx156.025–157.425 MHz Rx 156.050–163.275 MHz 6W/1W Radio marina con led de emergencia flotante Precio + iva

ICOM IC-M37 Tx156.025–157.425 MHz Rx 156.050–163.275 MHz 6W/1W Radio marina con led de emergencia flotante Precio + iva

Precio habitual $269.728 CLP
Precio habitual $339.687 CLP Precio de oferta $269.728 CLP
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Descripción

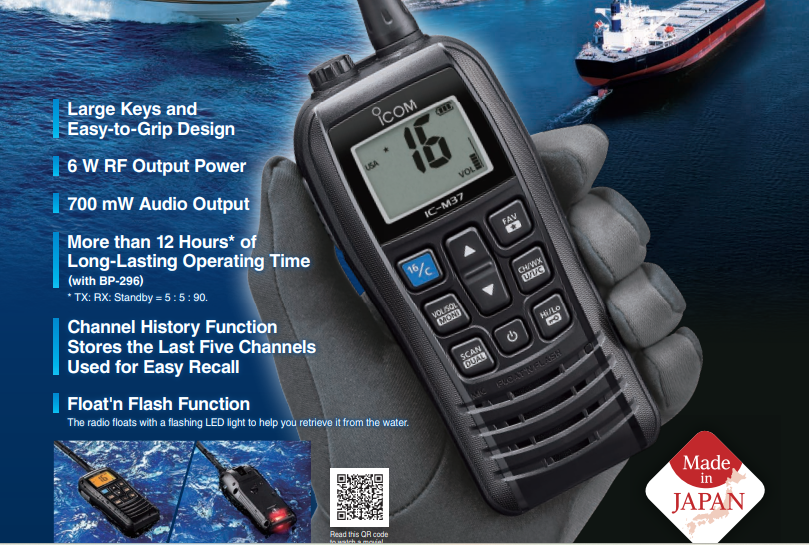

Fácil manejo con cuerpo de fácil agarre y botones grandes.

El IC-M37 tiene un cuerpo de diseño delgado y botones grandes, lo que permite un manejo sencillo incluso con guantes mientras se pesca o navega. Esto permite responder rápidamente a las llamadas. Además, el IC-M37 proporciona acceso instantáneo al canal 16, así como al canal de llamadas.

Salida de audio fuerte

El IC-M37 ofrece una potente salida de audio de 700 mW (típica). La voz recibida se puede escuchar alta y clara. Le ayuda a escuchar llamadas incluso en entornos ruidosos a bordo.

12 horas de funcionamiento prolongado

La batería de iones de litio BP-296 ofrece un tiempo de funcionamiento de aproximadamente 12 horas para un día completo de navegación o pesca. Para mayor tranquilidad en caso de emergencia, también está disponible el estuche de batería BP-297 opcional.

*Aproximado. Tx: Rx: En espera = 5 : 5 : 90.

Protección IP57 a prueba de agua y polvo

El IC-M37 cuenta con una excepcional protección contra el agua IP57, lo que garantiza su seguridad incluso cuando se sumerge en agua hasta una profundidad de 1 metro durante 30 minutos. Siéntase seguro al usarlo en la cubierta o en entornos polvorientos sin preocupaciones.

Función Float'n Flash™

Si se le cae accidentalmente el IC-M37 al agua, flotará, parpadeará y emitirá una alarma sonora. La flotabilidad, la luz intermitente y el sonido reducen el riesgo de pérdida en el mar, incluso de noche.

Película con la función Float'n Flash

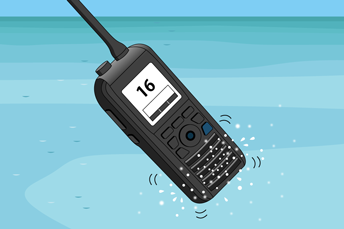

Función de drenaje de agua AquaQuake™

AquaQuake™ evita la degradación del audio de un altavoz mojado. Esta función elimina el agua de la rejilla del altavoz haciendo vibrar el cono del altavoz. Con esta función, podrá escuchar un audio claro.

Potencia de salida RF de 6 W

Los 6 vatios de potencia de transmisión del IC-M37 proporcionan un rango de comunicación extendido para el usuario.

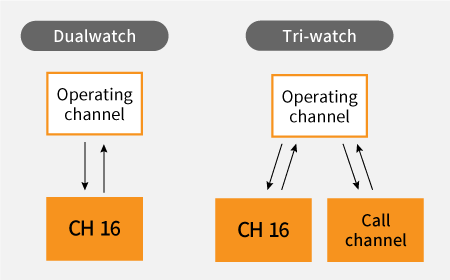

Funciones de doble vigilancia y triple vigilancia

Las funciones Dualwatch y Tri-watch permiten la comprobación periódica del Canal 16 mientras se opera en otro canal. Esta función resulta muy práctica cuando se comunica con los barcos de sus amigos o durante las regatas de vela, ya que le permite hacer anuncios importantes sobre la carrera.

Función de monitor

Cuando la señal recibida es débil y difícil de escuchar, puede utilizar la función Monitor para abrir el silenciador y ayudarlo a escuchar la señal.

Características adicionales

  • La función de alerta de batería baja le notifica el nivel bajo de batería.
  • La función de voz alta y silenciada permite maximizar o silenciar temporalmente el volumen.
  • La función de historial de canales almacena los últimos cinco canales utilizados para recordarlos fácilmente
  • Varias funciones de escaneo (normal/prioritaria)
  • Función de canal favorito
  • Se suministra con paquete de batería de iones de litio BP-296 reemplazable por el usuario
  • Canales meteorológicos con función de alerta meteorológica
  • Función de bloqueo
  • Función de ahorro de energía
  • Función de luz de fondo para funcionamiento nocturno.
  • Selección del contraste de la pantalla LCD

General

Frequency range TX 156.025–157.425 MHz
RX 156.050–163.275 MHz
Usable channel groups INT, USA, CAN, WX channels
Type of emission 16K0G3E
Current drain
(at 3.7 V DC)
TX (6.0 W/1.0 W output) 2.75 A/1.0 A
RX
(Max. audio. Inter SP/Exter SP)
0.4 A/0.2 A
Operating temperature range -20 °C to +60 °C, -4 °F to +140 °F
Antenna impedance 50 Ω
Dimensions (W×H×D)
(Projections not included)
59.7 × 140.5 × 38.7 mm,
2.4 × 5.5 × 1.5 in
Weight (approximate) 293 g, 10.3 oz
(with BP-296, antenna and belt clip)

Transmitter

Output power (Hi/Low) 6 W/1 W
Max. frequency deviation ±5.0 kHz
Frequency stability ±10 ppm
Spurious emissions –68 dBc typical

Receiver

Sensitivity (at 12 dB SINAD) 0.25 μV typical
Squelch sensitivity (Threshold) 0.25 μV typical
Adjacent channel selectivity 70 dB typical
Spurious response 70 dB typical
Intermodulation 70 dB typical
Hum and noise 40 dB
Audio output power
(at 10% distortion)
Internal SP 0.7 W typical
( 8 Ω load)
External SP 0.3 W typical
( 4 Ω load)

Measurements made in accordance with TIA/EIA-603.
All stated specifications are subject to change without notice or obligation.

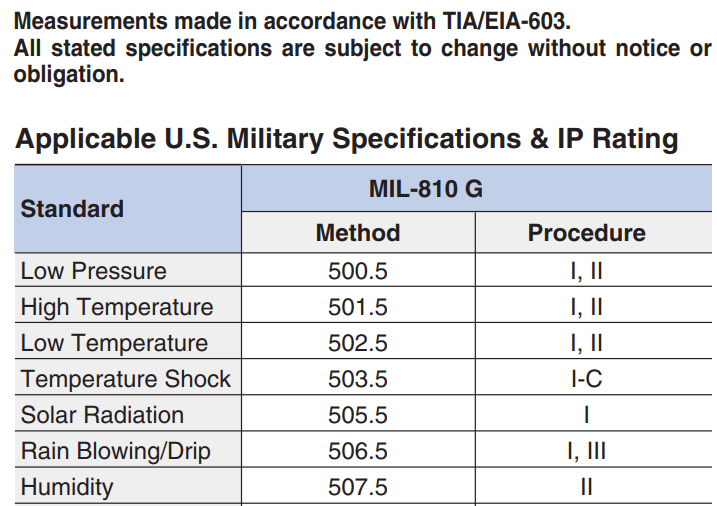

Applicable U.S. Military Specifications

Standard

MIL-810 G
Method Procedure
Low Pressure 500.5 I, II
High Temperature 501.5 I, II
Low Temperature 502.5 I, II
Temperature Shock 503.5 I-C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II

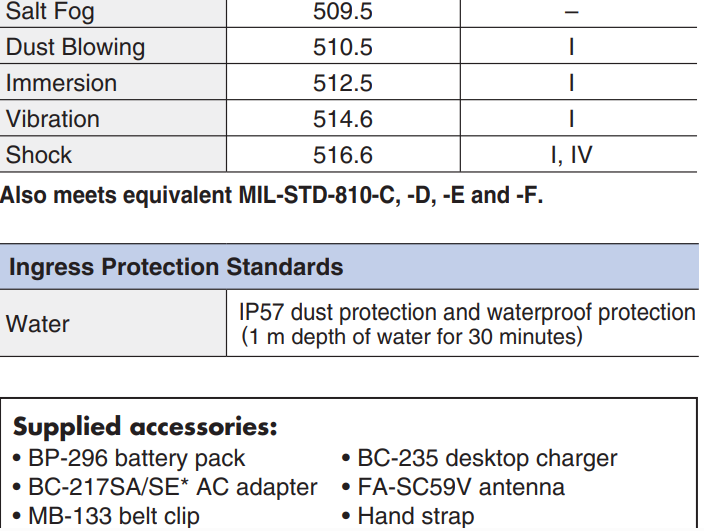

Salt Fog 509.5
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Applicable IP Rating

Ingress Protection Standard
Water IP57 dust protection and waterproof protection

Supplied accessories

・    BP-296 battery pack
・    BC-235 desktop charger
・    BC-217SA/SE* AC adapter
・    FA-SC59V antenna
・    MB-133 belt clip
・    Hand strap
* May differ or not supplied, depending on the transceiver version.

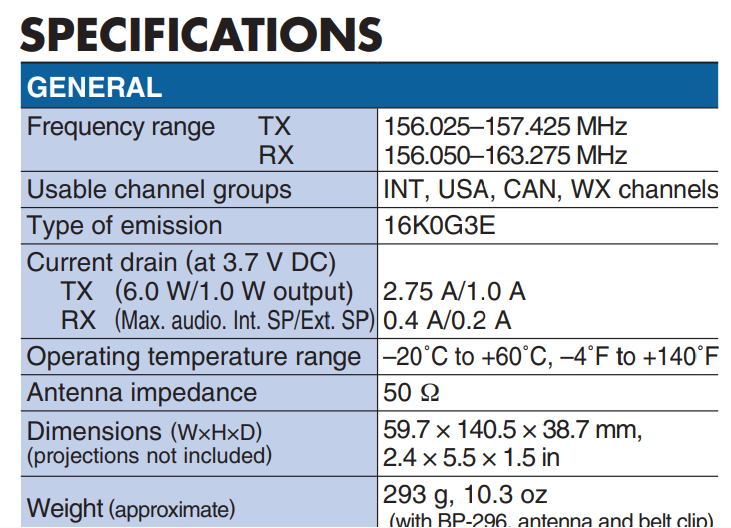

SPECIFICATIONS

GENERAL

Frequency range TX 156.025–157.425 MHz RX 156.050–163.275 MHz

Usable channel groups INT, USA, CAN, WX channels

Type of emission 16K0G3E

Current drain (at 3.7 V DC)

TX (6.0 W/1.0 W output)

RX (Max. audio. Int. SP/Ext. SP) 2.75 A/1.0 A 0.4 A/0.2 A

Operating temperature range –20˚C to +60˚C, –4˚F to +140˚F

Antenna impedance 50 Ω

Dimensions (W×H×D) (projections not included) 59.7 × 140.5 × 38.7 mm, 2.4 × 5.5 × 1.5 in

Weight (approximate) 293 g, 10.3 oz (with BP-296, antenna and belt clip)

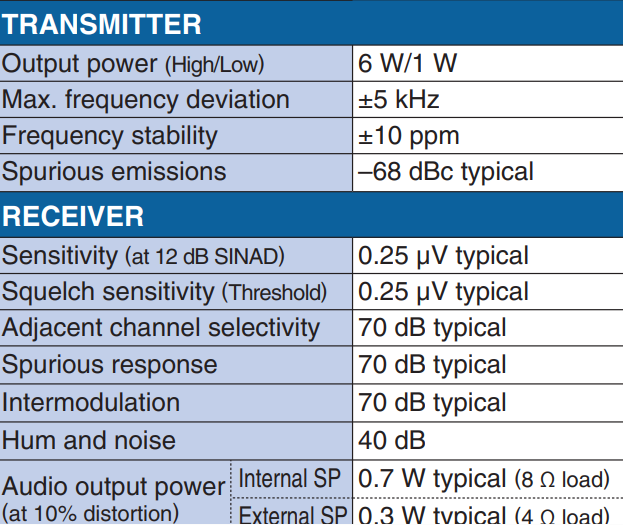

TRANSMITTER

Output power (High/Low) 6 W/1 W

Max. frequency deviation ±5 kHz

Frequency stability ±10 ppm

Spurious emissions –68 dBc typical

RECEIVER

Sensitivity (at 12 dB SINAD) 0.25 μV typical

Squelch sensitivity (Threshold) 0.25 μV typical

Adjacent channel selectivity 70 dB typical

Spurious response 70 dB typical

Intermodulation 70 dB typical

Hum and noise 40 dB

Audio output power (at 10% distortion)

Internal SP 0.7 W typical (8 Ω load)

External SP 0.3 W typical (4 Ω load)

Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications MIL-810 G & IP Rating

Ingress Protection Standards Water IP57 dust protection and waterproof protection (1 m depth of water for 30 minutes)

Supplied accessories: • BP-296 battery pack • BC-235 desktop charger • BC-217SA/SE* AC adapter • FA-SC59V antenna • MB-133 belt clip • Hand strap * May differ or not supplied, depending on the transceiver version

Icom, Icom Inc. and Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand and/or other countries. AQUAQUAKE is a trademark of Icom Incorporated. QR Code is registered trademark of DENSO WAVE INCORPORATED in Japan and in other countries. All other products or brands are registered trademarks or trademarks of their respective holders.

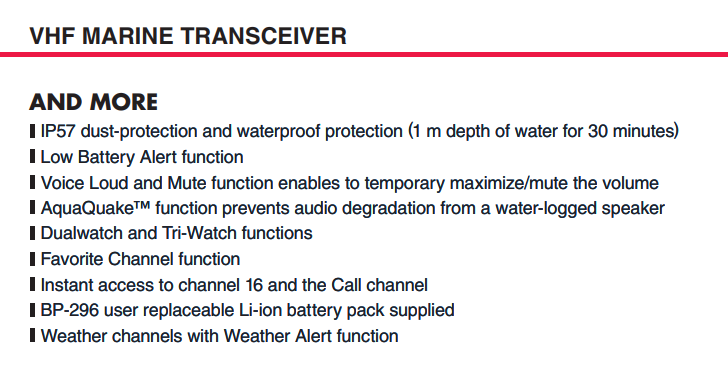

VHF MARINE TRANSCEIVER

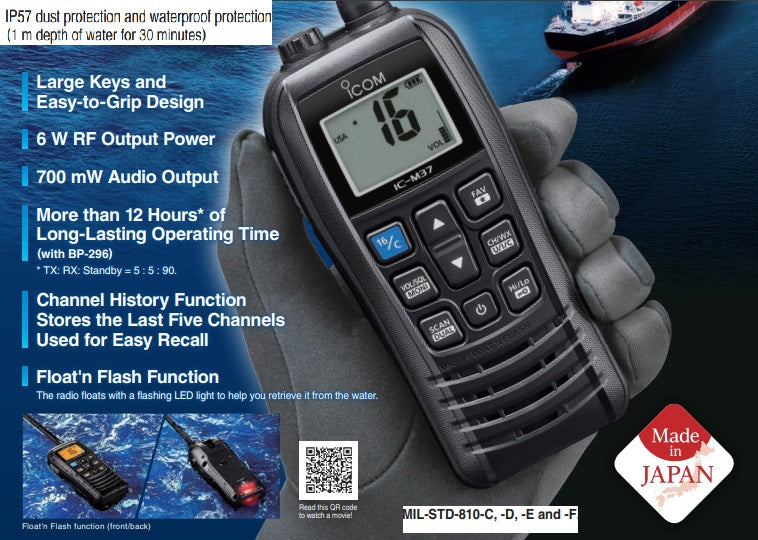

IP57 dust-protection and waterproof protection (1 m depth of water for 30 minutes)

Low Battery Alert function

Voice Loud and Mute function enables to temporary maximize/mute the volume

AquaQuake™ function prevents audio degradation from a water-logged speaker

Dualwatch and Tri-Watch functions

Favorite Channel function Instant access to channel 16 and the Call channel

BP-296 user replaceable Li-ion battery pack supplied Weather channels with

Weather Alert function

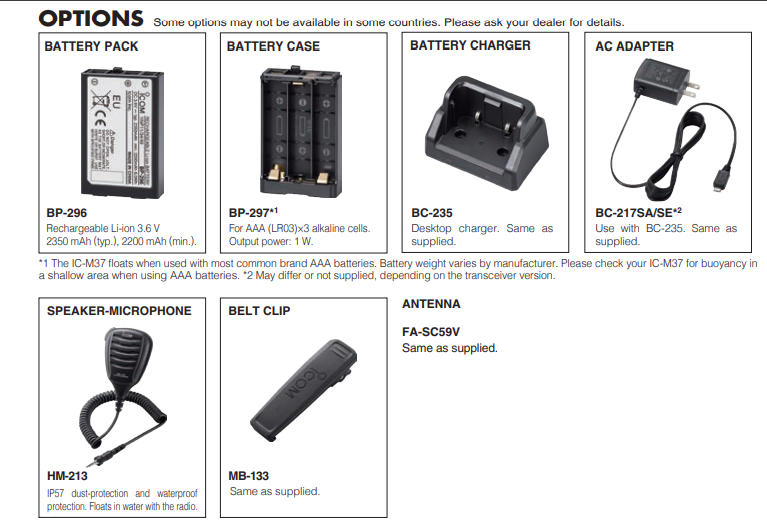

OPTIONS

BP-296 Rechargeable Li-ion 3.6 V 2350 mAh (typ.), 2200 mAh (min.).

BP-297 For AAA (LR03)×3 alkaline cells. Output power: 1W

BC-235 Desktop charger. Same as supplied.

BC-217SA/SE*2 Use with BC-235. Same as supplied.

HM-213 IP57 dust-protection and waterproof protection. Floats in water with the radio.

MB-133 BELT CLIP Same as supplied.
